RIGID SERIES

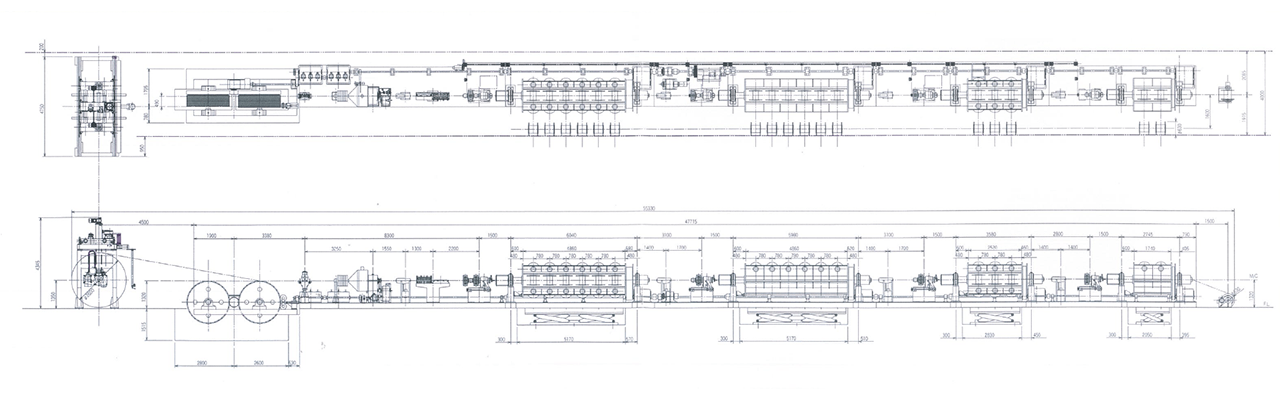

HAMANA RIGID TYPE STRANDER
Hamana Rigid Type Strander is suitable for making power cables and electric cables of round strand, round compact strand., sector conductors, multy cores lay-up,and also steel wires armouring.
SPECIAL ADVANTAGES
- Cage bobbins charging/ discharging system
- Tail stocks of one row of the bobbins are connected by universal joint and operated with airmotor for charging/discharging all cage bobbins in one row at the same time.By applying this system, time required for charging/discharging cage bobbins is shorteded remarkablly and working efficiency is improved considerablly.This system is patented under Patent No.644984
- Cage bobbins charging/ discharging system
- 1.Lifter,45°incline system.
2.Lifting truck, Horizontal system.
3.Table lifter,vertical system. With discharging convayer. 3-b.Over-hang Hook system.
- Bobbin braking system
- 1.Band brake system.
2.Air brake system.
3.Hysteresis brake system.
4.Pay-off wires automatic tension control device can be offered upon request.
- Construction of cage
- 3-partition cage type.120°×3rows
4-partition cage type.90°×4rows
- Bobbin loading/unloading
- In order to minimize required time for loading/unloading, number of cage bobbins must be loaded/unloaded at the same time, and we have several system for this purpose.
We recommend No.3 Table lifter with discharge convayer as the most efficient system.
BOBBIN LOADING/UNLOADING SYSTEM
-
Bobbins loading/unloading Lifter. 45°incline system. -
Bobbins loading/unloading truck Horizontal system. -

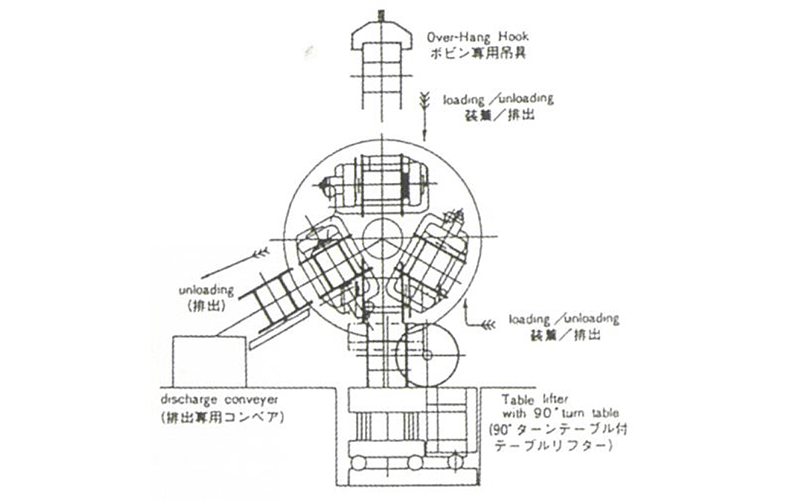

Bobbin loading/unloading Table Lifter with discharge convayer.Vertical system.
(3-b. Over-hang Hook system can be offered at user's option.)
Product Details
| Size of Bobbin | φ520 | φ610 | φ812 | |||
|---|---|---|---|---|---|---|
| Kind of wire | Al | Cu | Al | Cu | Al | Cu |
| Bobbin G.W. | 170kg | 350kg | 230kg | 450kg | 350kg | 650kg |
| 6B CAGE | Max.310RPM | Max.230RPM | Max.300RPM | Max.210RPM | Max.240RPM | Max.145RPM |
| 12B CAGE | Max.310RPM | Max.200RPM | Max.300RPM | Max.185RPM | Max.200RPM | Max.120RPM |
| 18B CAGE | Max.260RPM | Max.170RPM | Max.240RPM | Max.145RPM | Max.175RPM | Max.105RPM |
| 24B CAGE | Max.220RPM | Max.150RPM | Max.200RPM | Max.110RPM | Max.150RPM | Max.90RPM |
| 30B CAGE | Max.190RPM | Max.120RPM | Max.170RPM | Max.90RPM | Max.115RPM | Max.75RPM |
*As Hamana's machine is basically manufactured by order-made, it is possible to design it by each customer's requirement.
Please accept the rare case in which we can not meet your demand.
