SINGLE TWIST

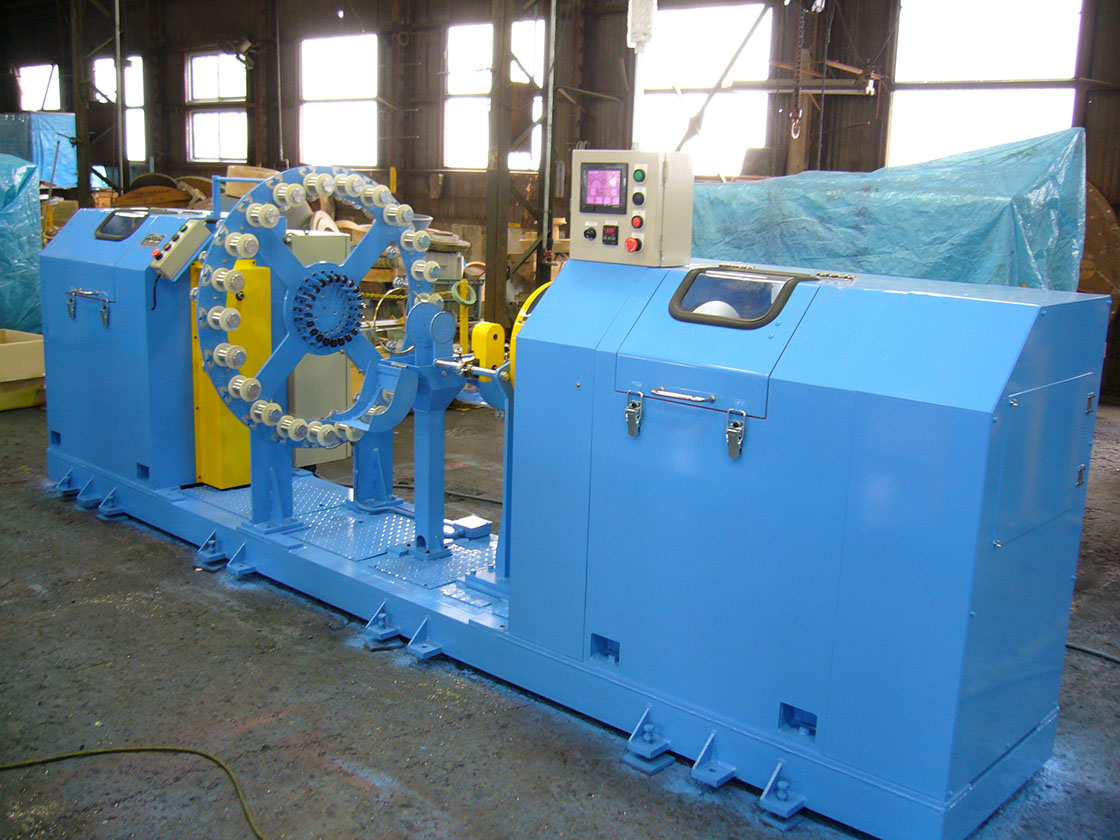

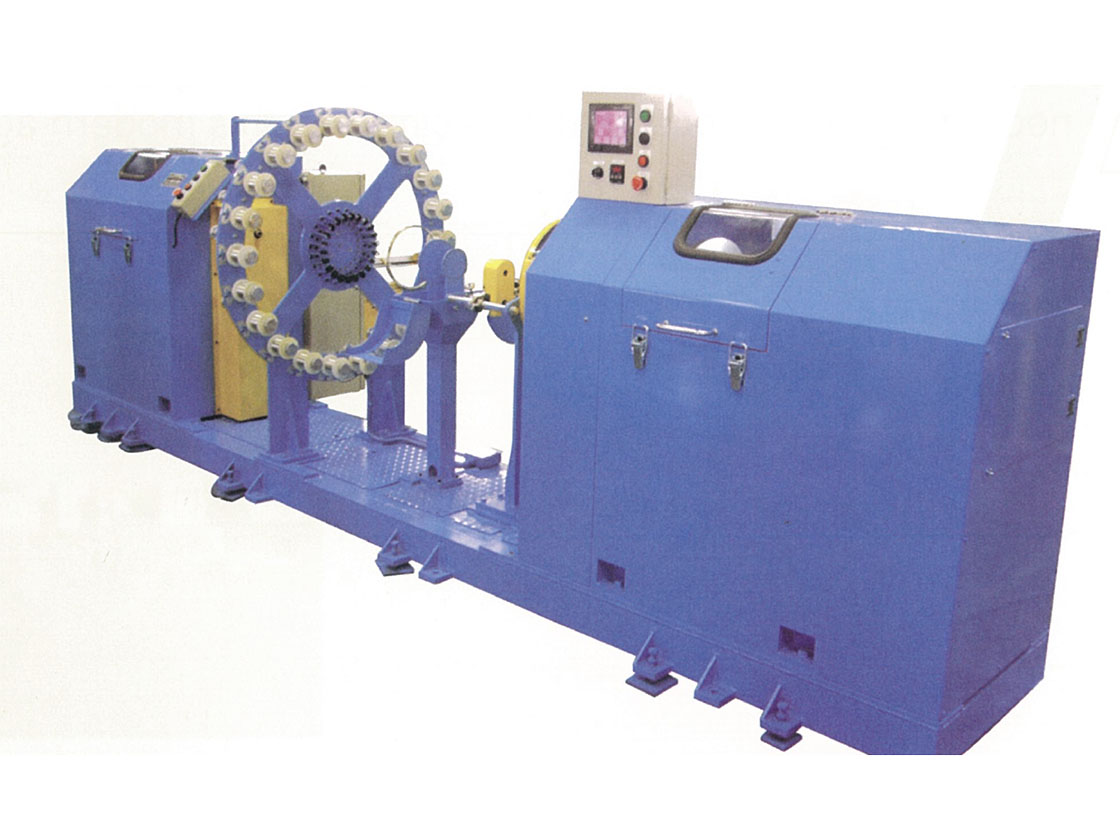

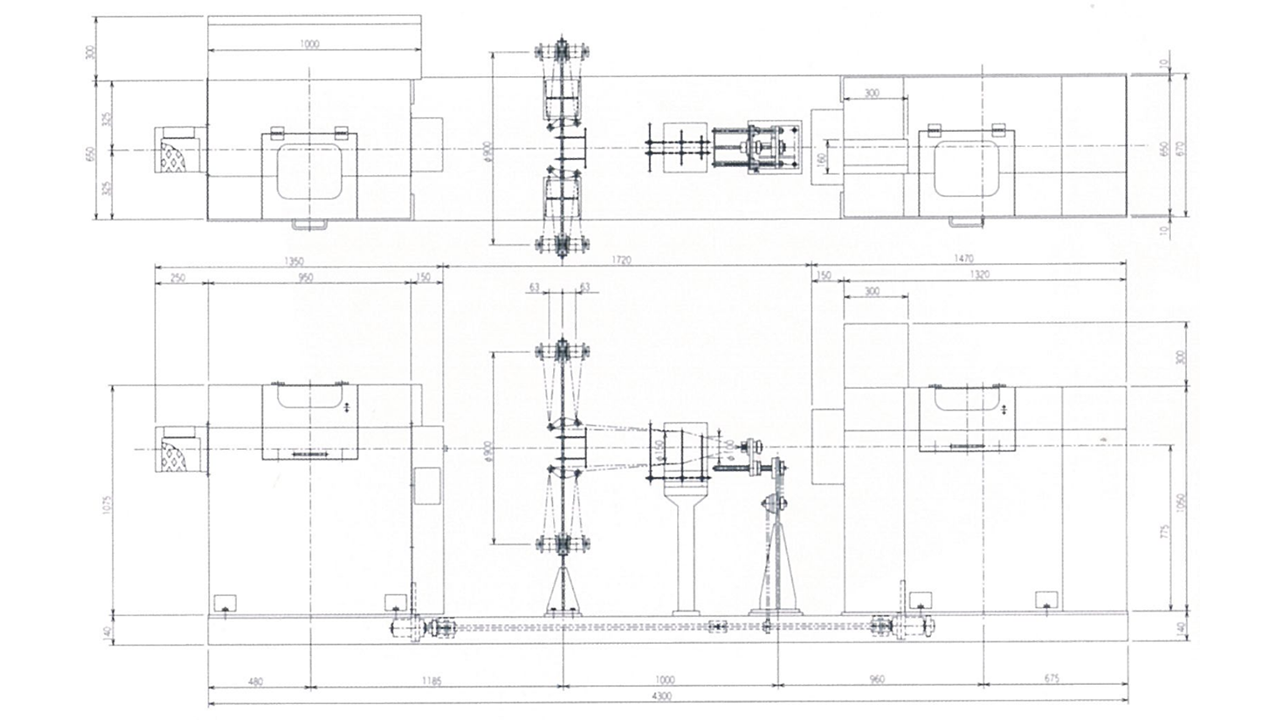

HIGH SPEED HORIZONTAL SHIELD MACHINE
The shield wire to be used for Electro-Magnetic shielding is the absolute necessaries of various industrial circles in this modern age.
SPECIAL ADVANTAGES
- Productivity increased remarcablly for single twist type horizontal shield machine as unprecedented high speed 2500RPM is materialized.
- Wire breakage can be detected securely by detecting revolution of the pay off bobbin with the sequencer (optional item).
- Inverter control system is applied, and no driving shaft is used.
- Automatic tension control system is applied, in order to give constant and uniform tension throughout the bobbin is build up.
- The string-up of the wires is much easier than conventional type of the machine.
- By applying the capstan, machine performance become very stable due to the stabilized pitch.
- Longitudial Taping System (optional item).
- Shield tension is selectable by perma-torque and whiskering system.
- The machine capacity was much improved by applying the rotary dice.
Product Details
| Machine Model | HSS-200・250 |
|---|---|
| Line speed | Max.3000RPM |
| Bobbin for core wire | φ200/φ250mm |
| Shield bobbin | φ80mm |
| Take-up bobbin | φ200/φ250mm |
| Shield number | Max.40wires |
| Horizontal lay pitch | 2～8mm |
| Dia.of single wire | φ0.08～φ0.025mm |
| Dia.of core wire | φ0.8～φ0.1mm |
| Supply wire breakage detector | Sequencer,detecting Bobbin rotation detection |
*As Hamana's machine is basically manufactured by order-made, it is possible to design it by each customer's requirement.
Please accept the rare case in which we can not meet your demand.
※Supply wire system, supply wire tension adjusting system and over-twist system are available according each customer's request.
