SINGLE TWIST

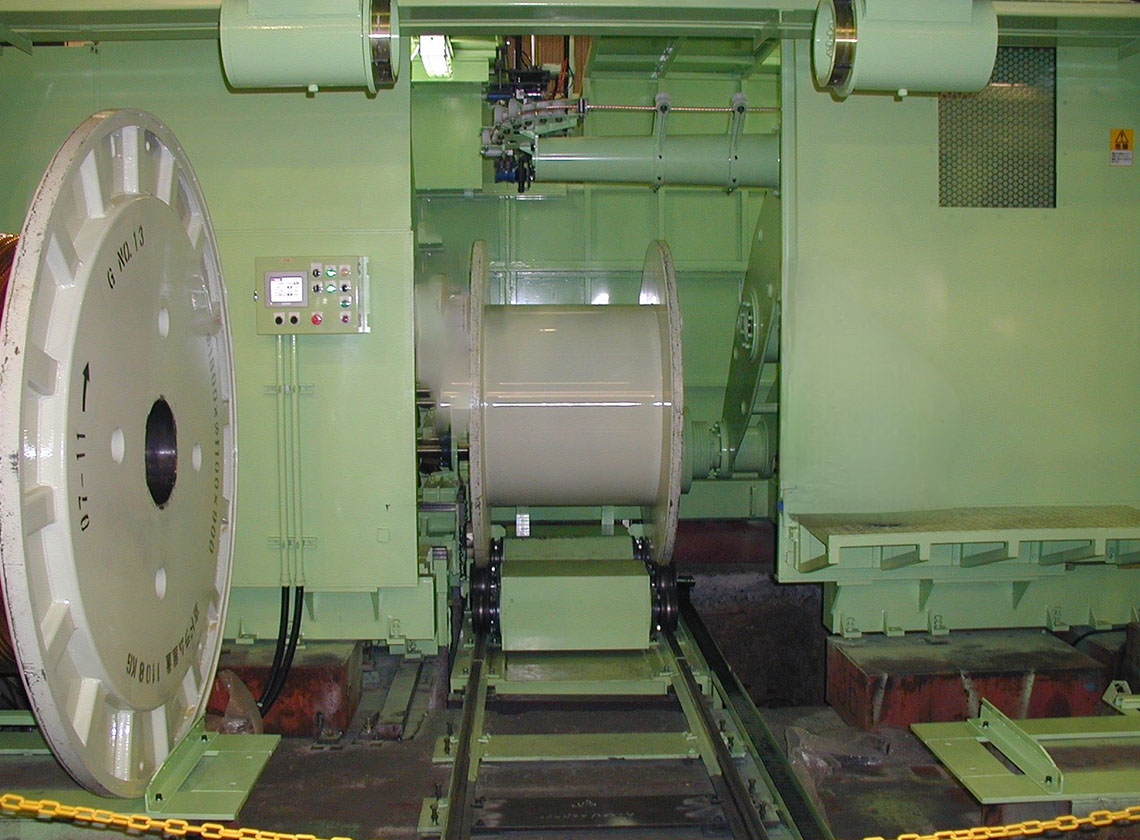

SINGLE TWIST BUNCHER WITH AUTOMATIC DRUM EXCHANGE SYSTEM
Unattendant Operation System have been materialized by applying Automatic Operation System and Automatic Drum Exchange System and Production Controls. This machine is used for making round strand. Suitable for making same direction round compact strand of Max.61 wires/250sq by 1step. suitable for laying-up insulated wire.
SPECIAL ADVANTAGES
- By installing this device as an option in our production equipment, it enables automatic changeover of the rewind bobbin.
- No manual winding bobbin or drum transfer is required, and the entire process is fully automated, from take-off to take-on.
- No manual rewinding of wires and cables is required. The finished wires and cables are automatically cut and can be wound onto the next new bobbin or drum.
- 24-hour unmanned operation is available.
| 7Wires | 19Wires | 37Wires | 61Wires | |
|---|---|---|---|---|
| Soft Copper | ○ | ○ | ○ | ○ |
| Hard Copper | ○ | ○ | - | - |
-
Tension control -

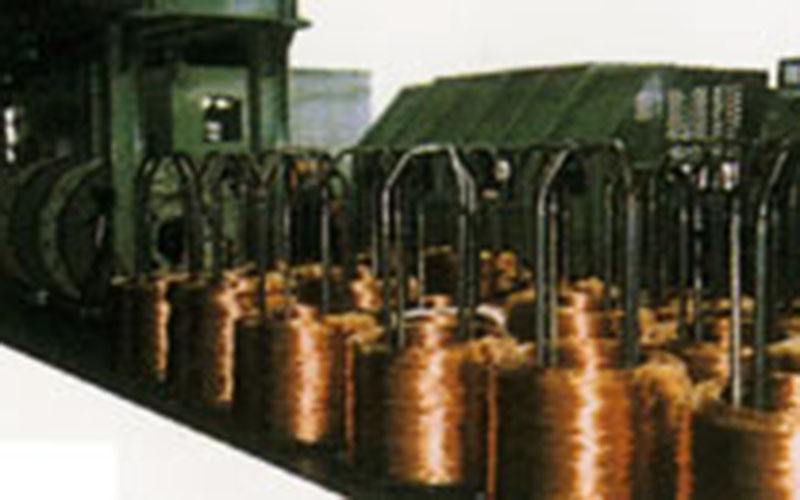

Pay-off stand
Product Details
| Machine Model | HES-ERH-ARφ1500 | HES-ERH-ARφ1800 | HES-ERH-ARφ2000 |
|---|---|---|---|
| Dia.of take-up drum | φ1500mm | φ1800mm | φ2000mm |
| Kind of wire | Soft Copper / Hard Copper | Soft Copper / Hard Copper | Soft Copper / Hard Copper |
| Construction of strand | 1+6 1+6+12+18 1+6+12 | 1+6 1+6+12+18 1+6+12 1+6+12+18+24 | 1+6 1+6+12+18 1+6+12 1+6+12+24 |
| Size of finished | ～200sq | ～250sq | ～250sq |
| No.of revolution | Max.250RPM | Max.250RPM | Max.200RPM |
*As Hamana's machine is basically manufactured by order-made, it is possible to design it by each customer's requirement.
Please accept the rare case in which we can not meet your demand.
*Supply wire system, supply wire tension adjusting system and over-twist system are available according each customer's request.
