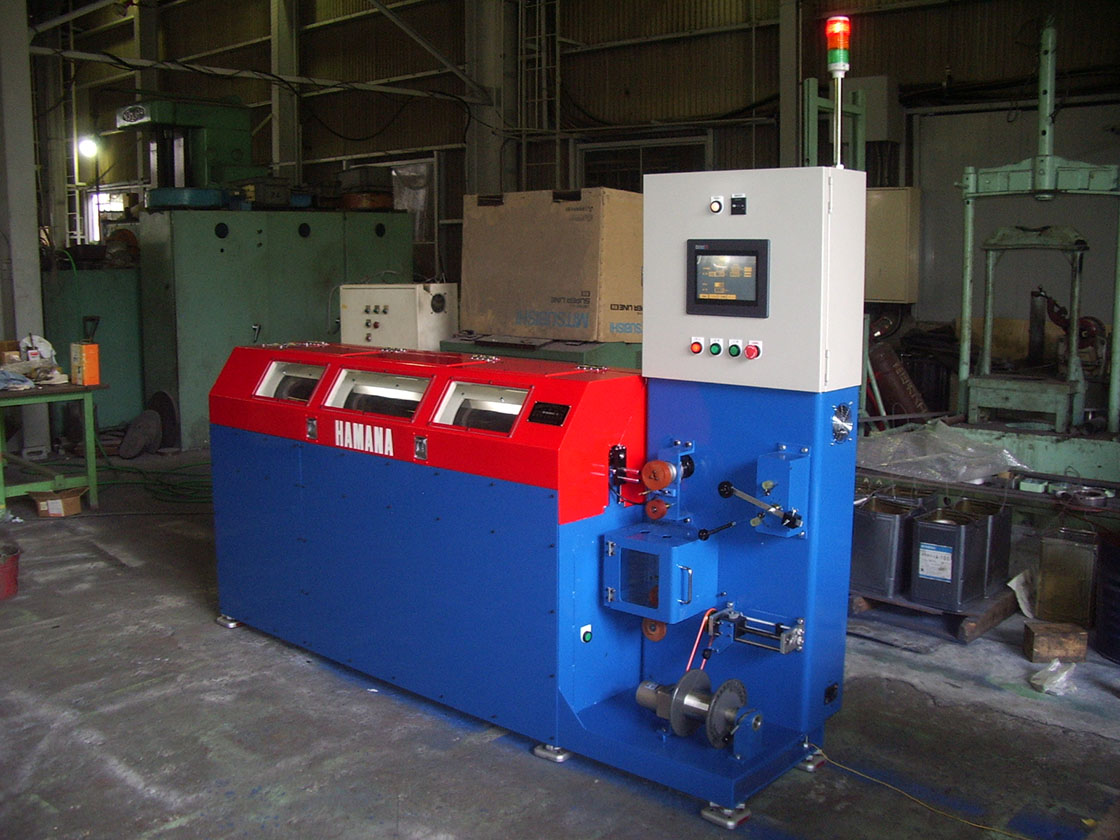

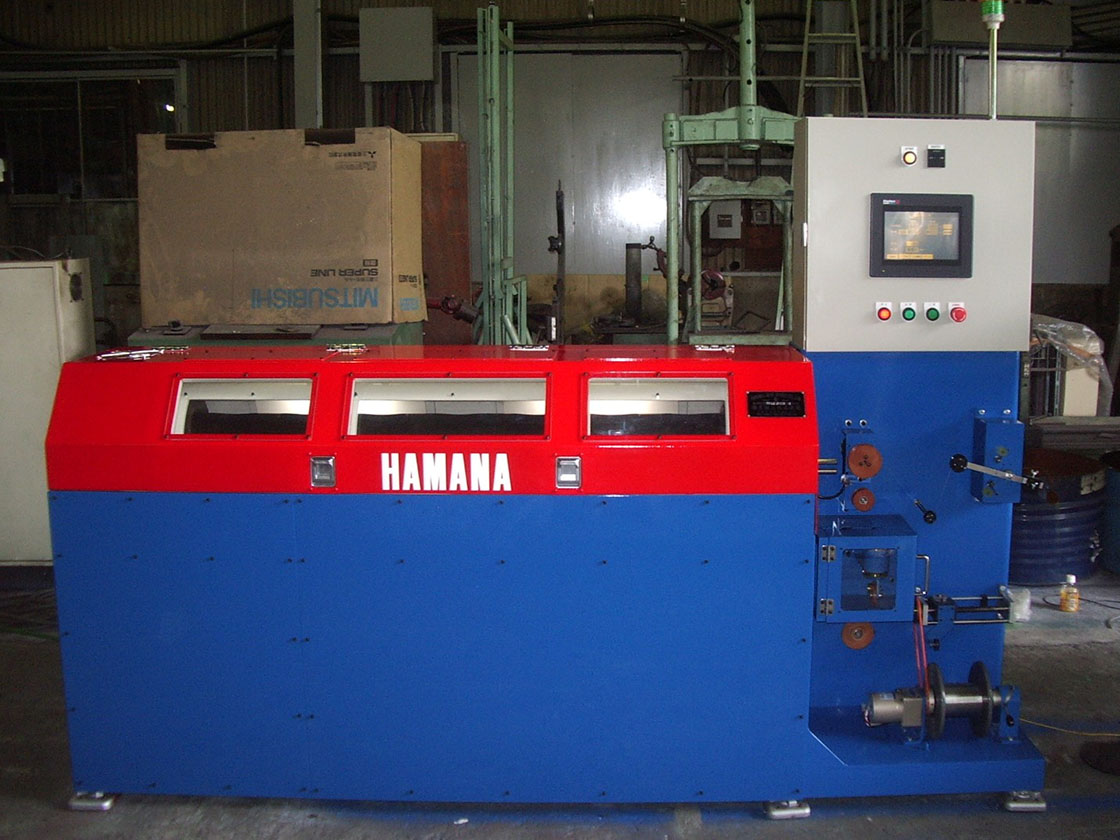

AIR BEARING TYPE HIGH SPEED TUBULAR MACHINE
The strand wire of diameter 1Omicron is possible also in the time of Max.6000 rotational frequency.
This is High Speed tubular is the most suitable machine for manufacturing concentric strand with Max.7wires of AWG40 to AWG48 Great for medical cable, and other types.
*Air bearing means the Hamana's patented system to support the tubular machine by air pressure instead of the traditional bearing.
SPECIAL ADVANTAGES
- High speed and High productivity of 6000RPM.
- The fine twist pitch is possible by individual driving system.
- Over twist system (optional item)
- Wire breakage detector is installed for each single wire and it can be detected securely.
- As the tension control of the supply can be done by mechanical dancer, the constant low tension can be obtained.(The magnetic brake system is also available.)
- Saving energy, maintenance-free, low noise and low vibration by applying the air bearing system.
- No any basement construction by applying the level pat.

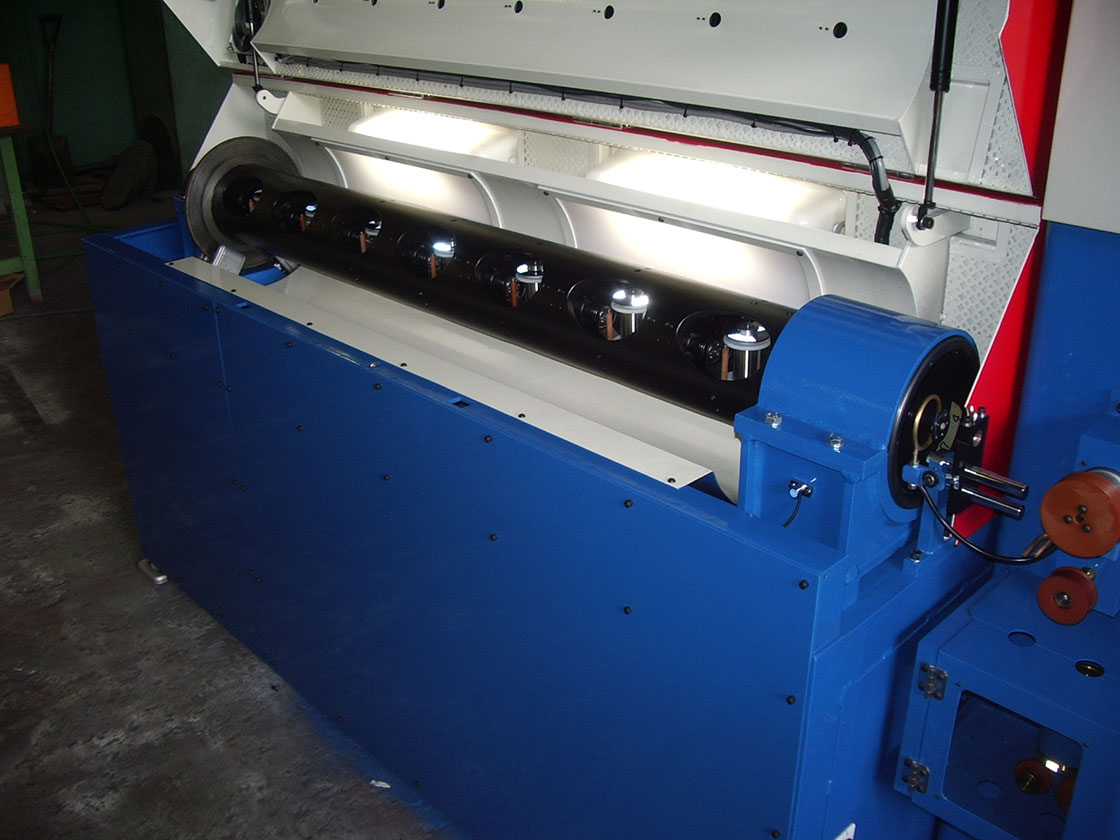

- Through-wire system to reduce the centrifugal force for supply wire.
Product Details
| Machine Model | φ80×7B筒型 | |
|---|---|---|
| Size | Pay-off bobbin | φ80mm |
| Take-up bobbin | φ130～φ200mm | |
| No.of Revolution | Max.6000RPM | |
| Dia.of Individual wire | φ0.03～φ0.01mm | |
| Dla.of stranded wire | Max.φ0.09mm | |
| No.of wire | 7wires | |
*As Hamana's machine is basically manufactured by order-made, it is possible to design it by each customer's requirement.
Please accept the rare case in which we can not meet your demand.
