DOWBLE TWIST

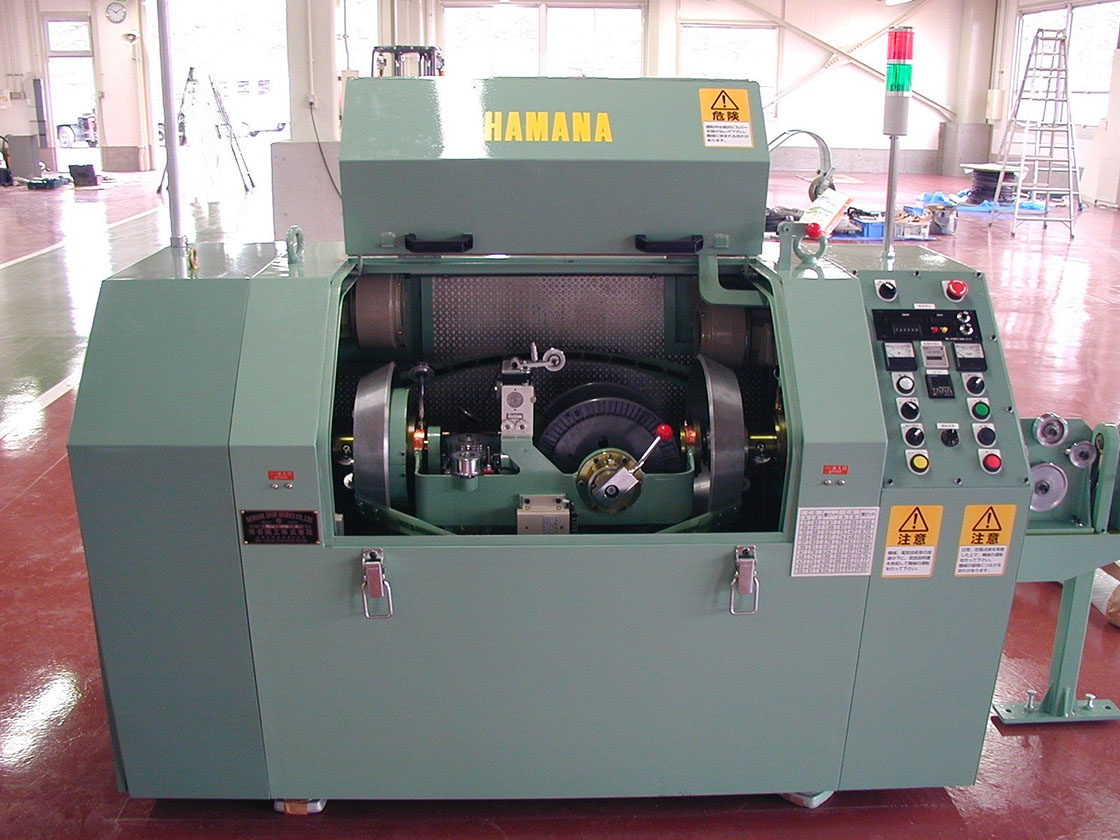

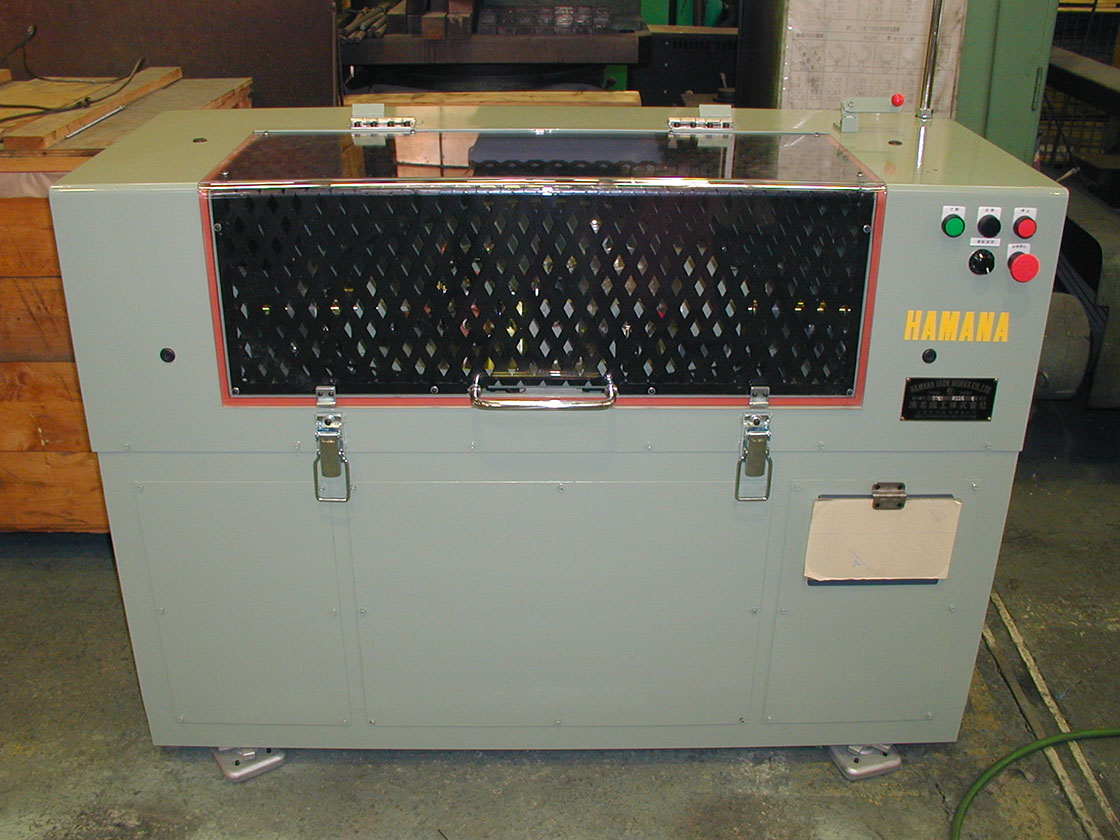

fine cable/ultra fine cable DOUBLE TWIST BUNCHER

DOUBLE TWIST BUNCHER

This machine is most suitable for manufacturing the ultra fine wire concentric cable, medical cable, and etc.

SPECIAL ADVANTAGES

High speed & high productivity of 3000RPM/6000TPM.
Constant tension is maintained from the first to the end of stranding owing to powder clutch (hysteresis clutch) and calculation by sequencer.
The rotor is supported by two motors for driving with 2/1 electric consumption of the traditional machine.
Load/unload is done by a table lifter or a hoist crane. (optional item)
Various optional system are available.
The wire runs smoothly as excessive curving is totally eliminated in new design.
Over twist system (optional item)
High speed rotation is materialized owing to the FRP-made bow.
Low noise is designed by applying the glass wool inside the cover.
No need to adjust the carriet pin by applying the urethane pressure-attach system.
Space saving and no extra-machine wiring are materialized owing to the control and operating board within a machine itself.
