DRUM TWISTER

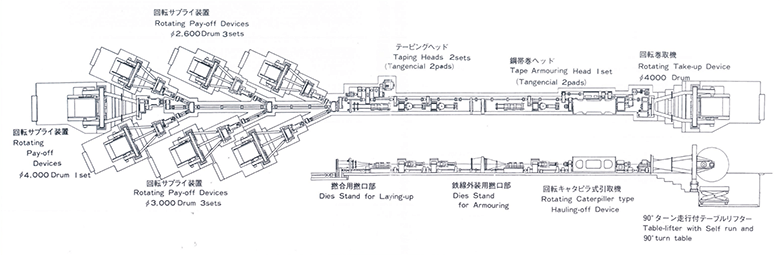

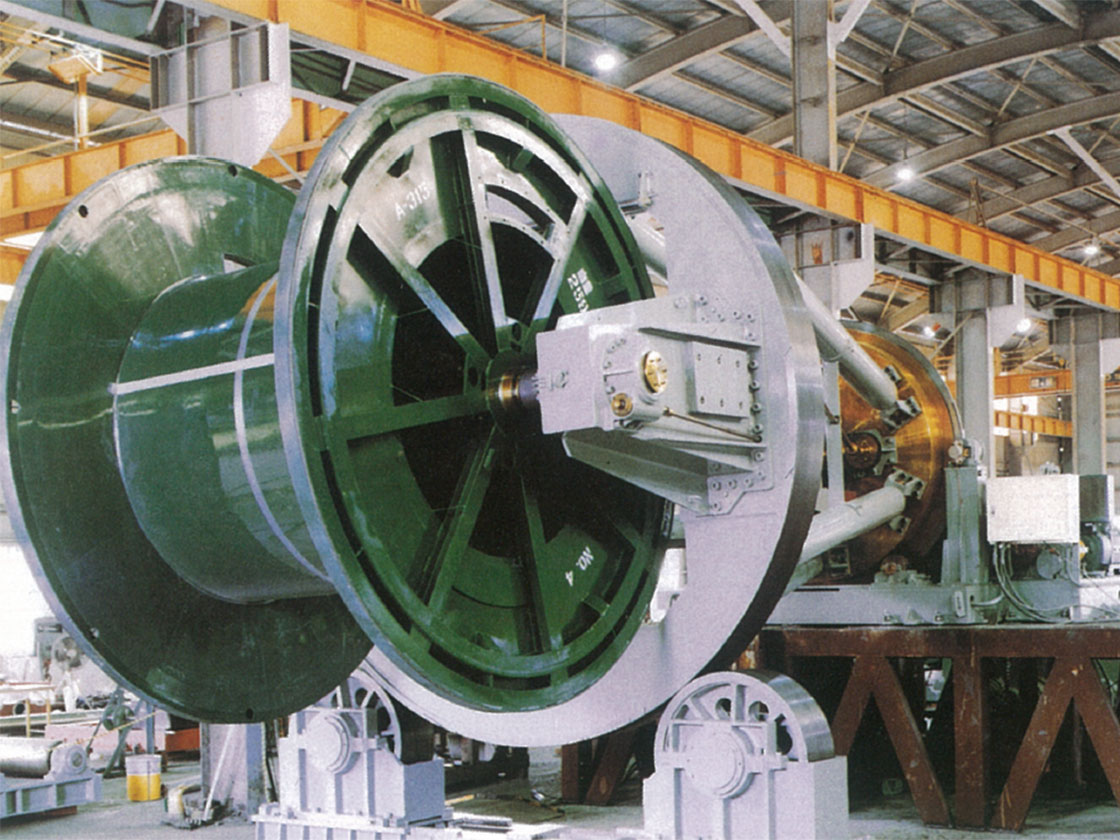

DRUM TWISTER TYPE LAYING-UP MACHINE
For laying-up power cable with shaped copper, solidal and aluminium conductors, and rubber insulated cable, assembling communication and control cable, and armouring.
SPECIAL ADVANTAGES
- Rotating take-up and pay-off
- Take-up drum is drived and also winding tension is controlled by AC Motor which is installed at outside of machne.Drum Shaft is automatically moved by Pilot Motor and Drum is accomodated on Machine by Hydraulic Table Lifter. Also tension of supply wire is controlled by Powder brake, AC Motor etc. Depend on customer's request, we can supply overhang type drum support or double flyer type drum support.
- Take-up traverse
- Traverse pitch an be set steplessly,And alse can be set during operating from outside of machine.
- Hauling-off device
- Rotating Caterpiller is adapted and a speed of hauling-off is adjusted by 64 steps (32steps) mission gear or PIV stepless speed changer.
- Starting-up
- Slow starting method by AC motor is adapted in order to eliminate shock at start.
- Brake
- Disk brake system
Product Details
| Model | 1600D/M | 1800D/M | 2000D/M | 2200D/M | 2400D/M | 2600D/M | |
|---|---|---|---|---|---|---|---|
| Take-up drum | φ1600mm | φ1800mm | φ2000mm | φ2200mm | φ2400mm | φ2600mm | |
| Pay-off drum | φ800mm ×7sets |
φ1000mm ×7sets |
φ2000mm ×1sets φ1600mm ×3sets |
φ2200mm ×1sets φ1600mm ×3sets |
φ2400mm ×3sets φ2000mm ×3sets |
φ2600mm ×1sets |
|
| Finish dia | power cable | Max. φ30mm |
Max. φ40mm |
Max. φ50mm |
Max. φ65mm |
Max. φ70mm |
Max. φ80mm |
| communication | Max. φ30mm |
Max. φ60mm |
Max. φ75mm |
Max. φ90mm |
Max. φ105mm |
Max. φ115mm |
|
| RPM | Max. 200RPM |
Max. 150RPM |
Max. 100RPM |
Max. 100RPM |
Max. 90RPM |
Max. 80RPM |
|
| Model | 2800D/M | 3000D/M | 3500D/M | 4000D/M | 4500D/M | |
|---|---|---|---|---|---|---|
| Take-up drum | φ2800mm | φ3000mm | φ3500mm | φ4000mm | φ4500mm | |
| Pay-off drum | φ1250mm ×16sets |
φ3000mm ×1sets φ2000mm ×3sets |
φ3000mm ×1sets φ2600mm ×3sets |
φ4000mm ×1sets |
φ3000mm ×7sets |
|
| Finish dia | power cable | Max. φ90mm |
Max. φ110mm |
Max. φ150mm |
Max. φ170mm |
Max. φ180mm |
| communication | Max. φ130mm |
Max. φ140mm |
Max. φ160mm |
Max. φ180mm |
Max. φ200mm |
|
| RPM | Max. 70RPM |
Max. 65RPM |
Max. 60RPM |
Max. 50RPM |
Max. 35RPM |
|
*As Hamana's machine is basically manufactured by order-made, it is possible to design it by each customer's requirement.
Please accept the rare case in which we can not meet your demand.
