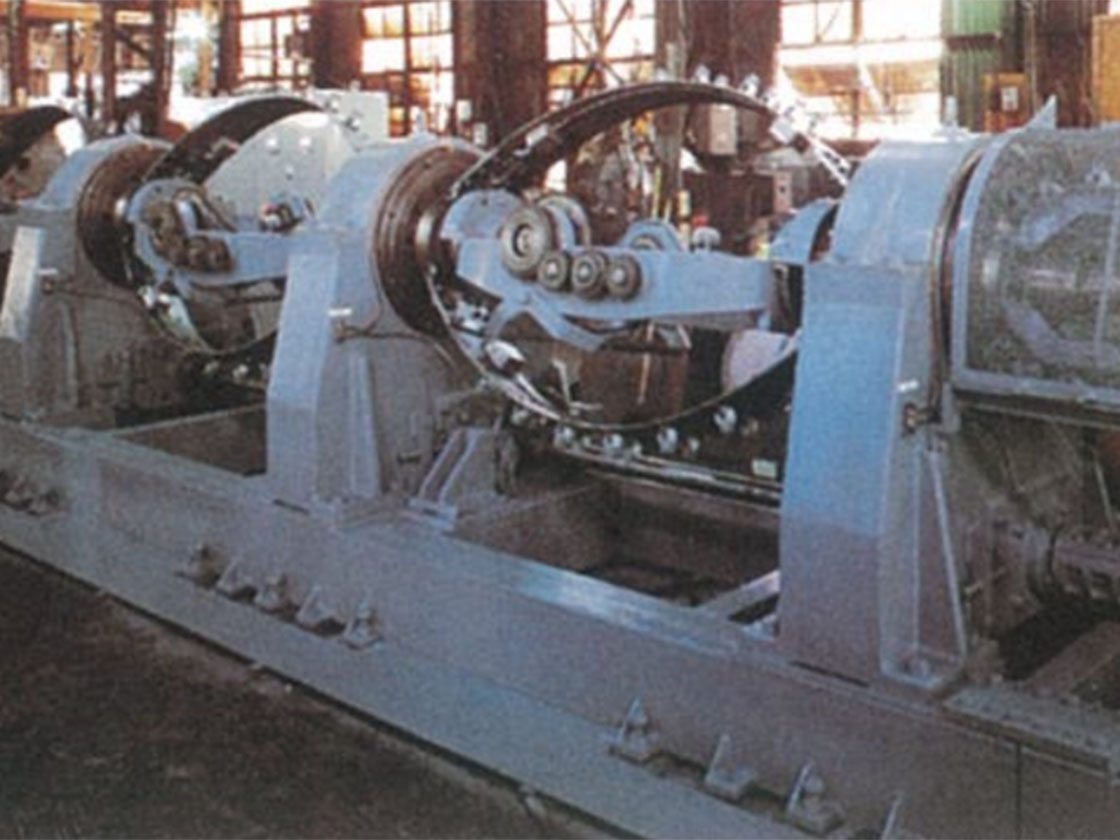

SKIP TYPE HIGH SPEED STRANDING/LAY-UP MACHINE

Since we have developed LATEST MODEL OF SKIP TYPE(BOW Type)High Speed LAY-UP MACHINE,we have been shipped these new type of machines to existing and new customers of electric cables makers, in domestic and abroad with good reputation.
Advantage of new Skip Type Lay-up machines are as follows; Big size of cradle drum can be accomodated,and machine running speed can be incleased etc., and new type is developed for easy operation, for increase efficiency of production, and minimize installation of utilities.

See the product catalog in PDF

SPECIAL ADVANTAGES

SKIP TYPE HIGH SPEED STRANDING MACHINE

Miniaturization of main motor

SKIP (bow) TYPE STRANDING MACHINE realized to miniaturize main motor, because the　inertia of rotating body is smaller in comparison with tubular type stranding machine.
Speed up of RPM

RPM of skip type machine could be increased in comparison with tubular type stranding machine, as rotating body is arch (bow) type.
Load/unloading bobbin

Operation of loading/unloading bobbin is very easy, since it has a large operating space, Hamana can also supply table lifter for under-loading in compliance with customer's request.
Noise and vibration

Noise and vibration is comparatively small in sprite of high speed revolutions in comparison with tubular type stranding machine because the inertia of rotating body is small. If required, noise protecting cover for main-machine can be provided.

SKIP TYPE HIGH SPEED LAY-UP MACHINE

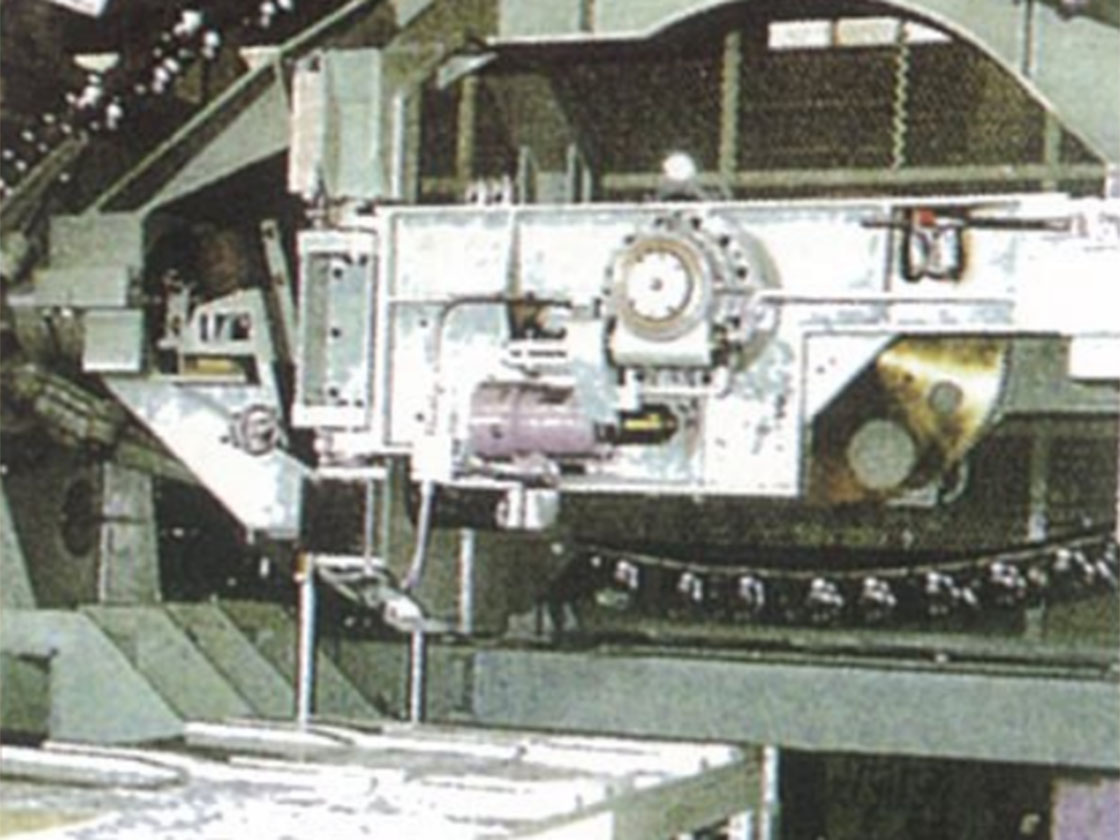

Loading/unloading cradle drum

Drum is loaded/unloaded with horizontal traveling type table lifter on the floor, equipped 90°against machine center line.Working　efficency is incleased and working time for preparation is shortened compare with traditional table lifter, pit tipe,or ceiling crane　type.Cradle is open/close system,Patent Pending No.22971,'97.
Merit

1.Motor is used for rotating the drum forward and reverse,and pinchcaterpiller is provided in order to facilitate wire threading works.
2.The above motor is also used for adjusting position of dog-pin and pinhole when charging the drum.
3.Drum is loaded/unloaded by horizontal travelling type table lifter, therefore cost of foundation work can be minimized.compare with traditional table lifter,pit type, vertical up/down system.

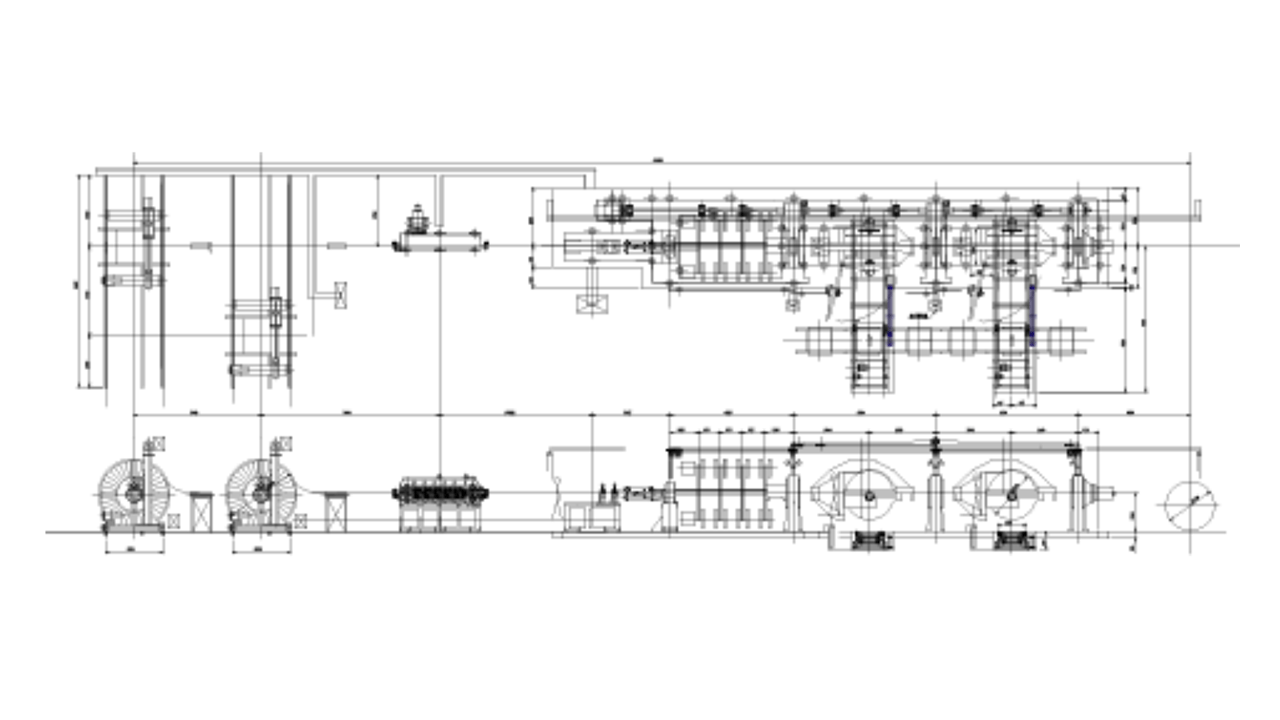

SKIP TYPE HIGH SPEED STRANDING/LAY-UP MACHIN

Product Details

Machine running speed	Max.RPM
φ1000×2B	400
φ1300×2B	300
φ1500×2B	200
φ1800×2B	200
φ1900×2B	200
φ2000×2B	150
φ2400×2B	110

Operational flow chart
Machine stops
Cutting cable	about 120sec
Exhausting empty cradle drum （truck moving in→lifter up→release pintles→lifter downt→truck moving out）	about 90sec
Exhausting empty cradle drum,loading full drum	about 120sec
Loading full drum	about 90sec
Connecting cable	about 120sec
Start operation	about 540 sec = 9 min.

*As Hamana's machine is basically manufactured by order-made, it is possible to design it by each customer's requirement. Please accept the rare case in which we can not meet your demand.

*Supply wire system, supply wire tension adjusting system and over-twist system are available according each customer's request.
