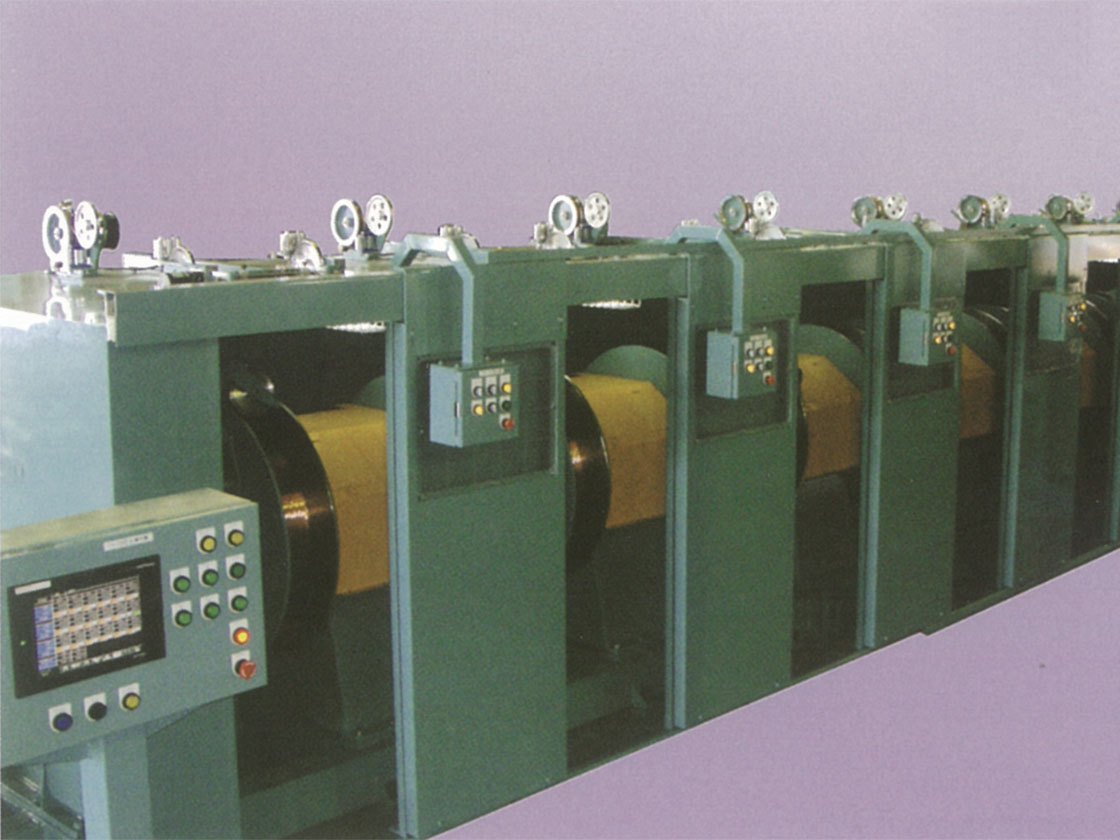

YH1000 STRANDER
YH1000 STRANDER
- APPLICATIONS
-
- Power cables stranded from 7 to 61.
- Applicable for the round , round-compact, sector-compact stranding and pre-spiraled sector-conductor of the bare copper wire and the bare aluminum wire.
SPECIAL ADVANTAGES
- Due to the simultaneous wire supplying from the reel and re-winding , the working efficiency is greatly improved.
- Due to no bobbin-exchange, the working efficiency is greatly improved.
- Due to the direct re-winding of the supply wire from the stem (carrier) to the reel attached to the main unit,the bobbins are not needed.
- High rotation speed of 600 rpm ensures the very high productivity.

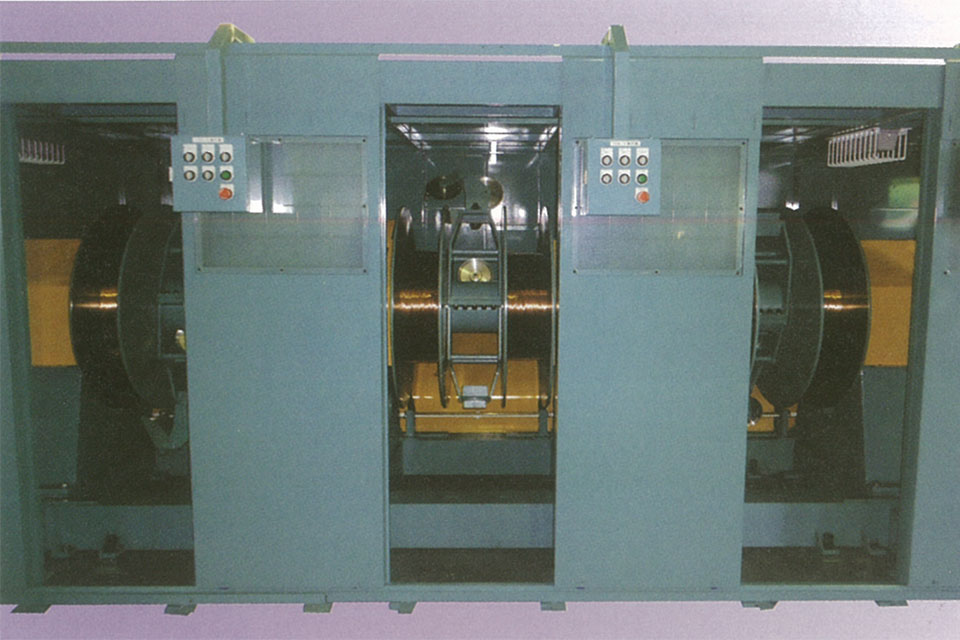

Product Details
| Machine Model | YH1000 STRANDER |
|---|---|
| Rotation speed | 600RPM |
| Maximum line speed | 200m／min |
| Driving system | Sectional driving system |
| Sectional driving system | φ1.5～φ3.0mm |
| Number of stranding wires | 7, 19, 37, 61(available according to unit composition) |
| Lay pitch | Digital input system |
| Control of supply wire tension | fixed wire tension by powder clutch control |
| Re-winding speed | Max. 200m/min |
| Others | By load cell system, the supply wire tension value can be monitored during running. |
*As Hamana's machine is basically manufactured by order-made, it is possible to design it by each customer's requirement.
Please accept the rare case in which we can not meet your demand.
